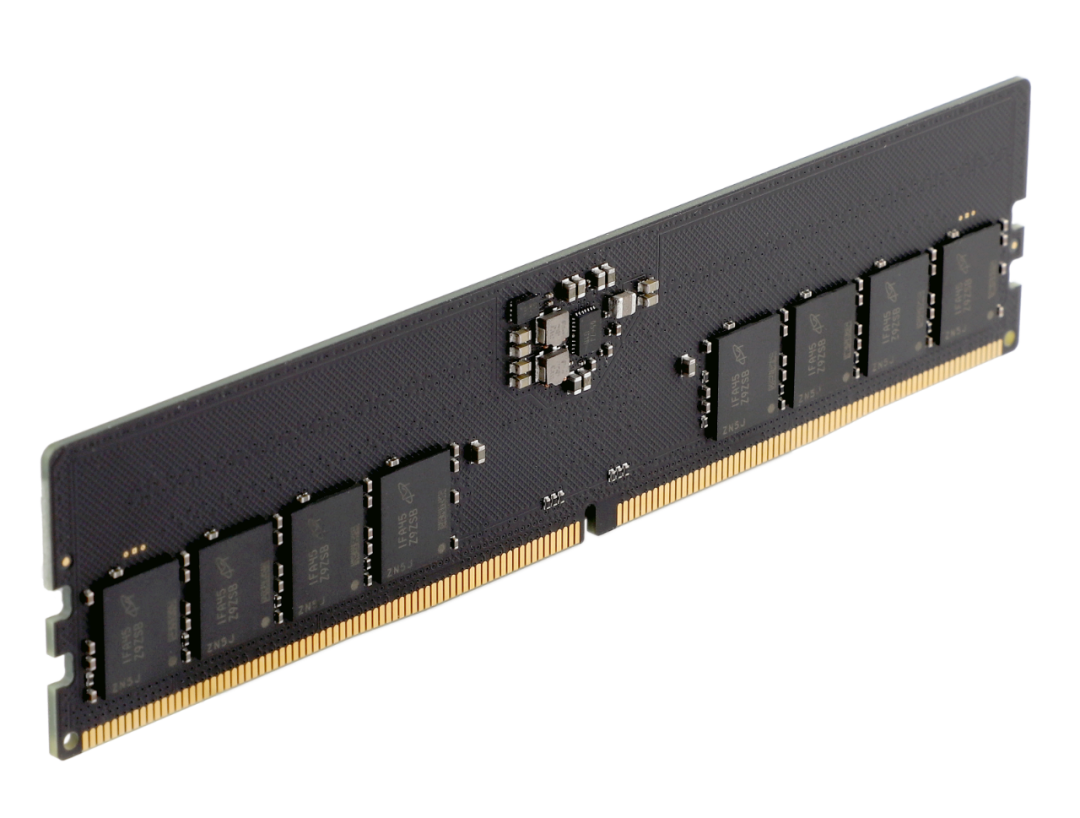

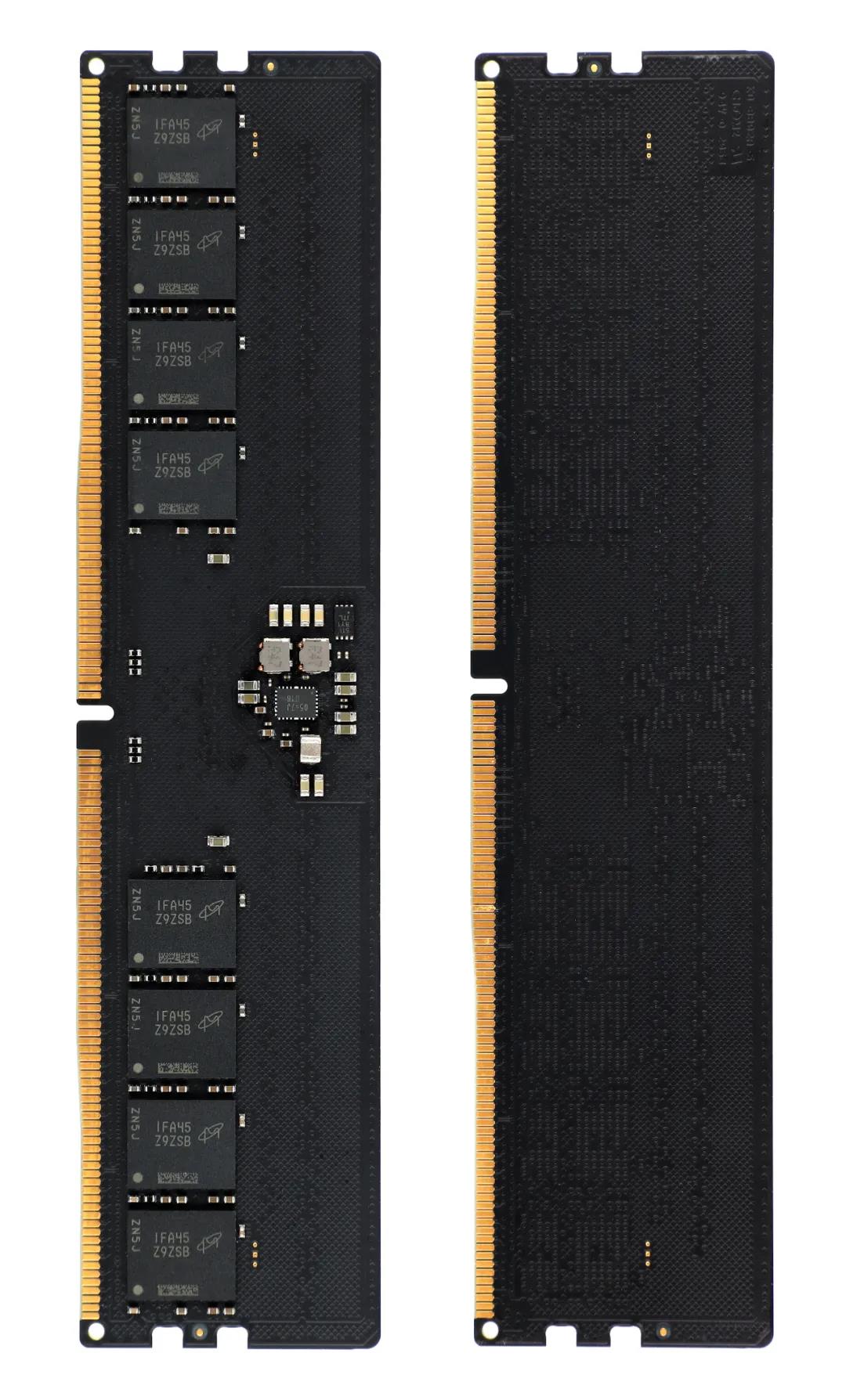

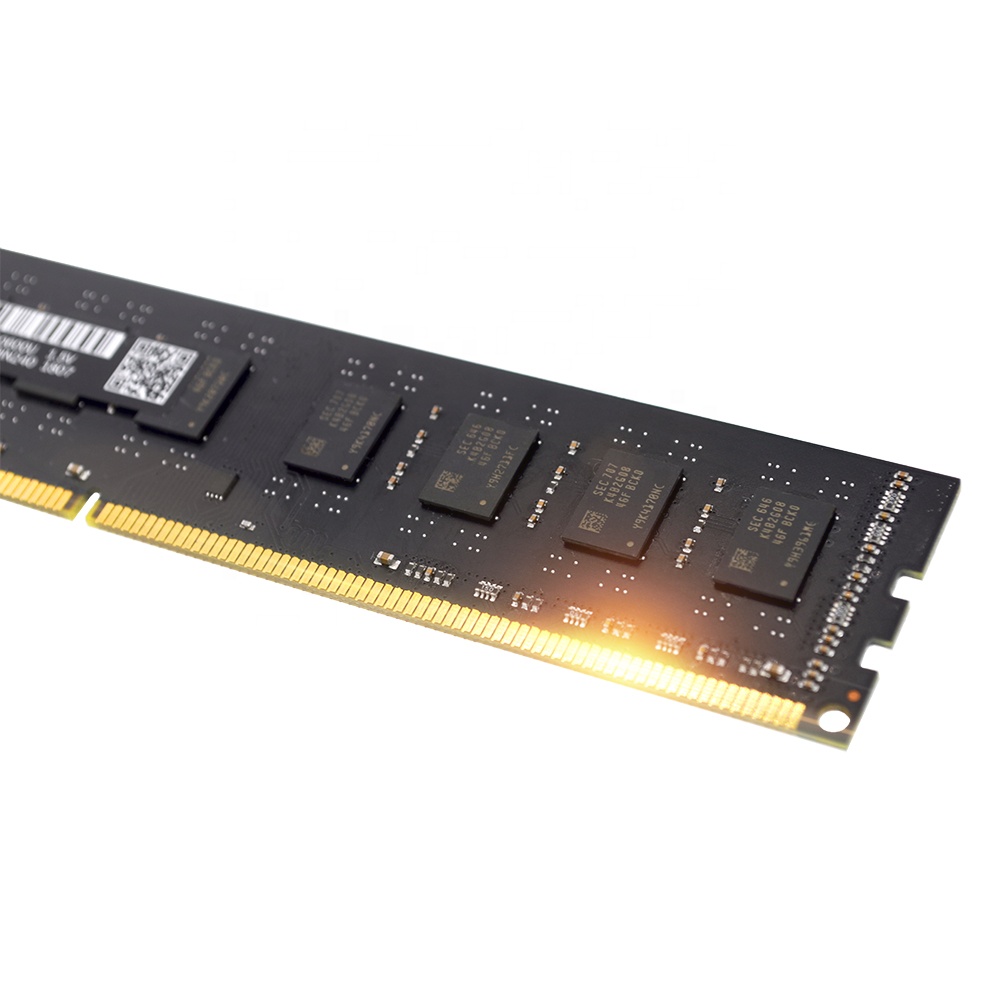

DDR4

16GB For refrence:

Power Supply: VDD=1.2V Typical

VDDQ = 1.2V Typical

VPP - 2.5V Typical

VDDSPD=2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.23” (31.25mm)

RoHS Compliant and Halogen-Fre
